The Fortis Kitchen Display System (KDS) replaces paper kitchen tickets with a real-time digital order queue on any screen in your kitchen. Orders from the POS appear instantly on the display, giving your kitchen team full visibility and helping them work faster.
With KDS:
- Orders appear on the kitchen screen instantly: no paper tickets needed
- Full queue visibility: kitchen sees all active orders in real time
- Fewer errors and faster preparation
- Two operation modes to fit your service style
How to Set Up KDS

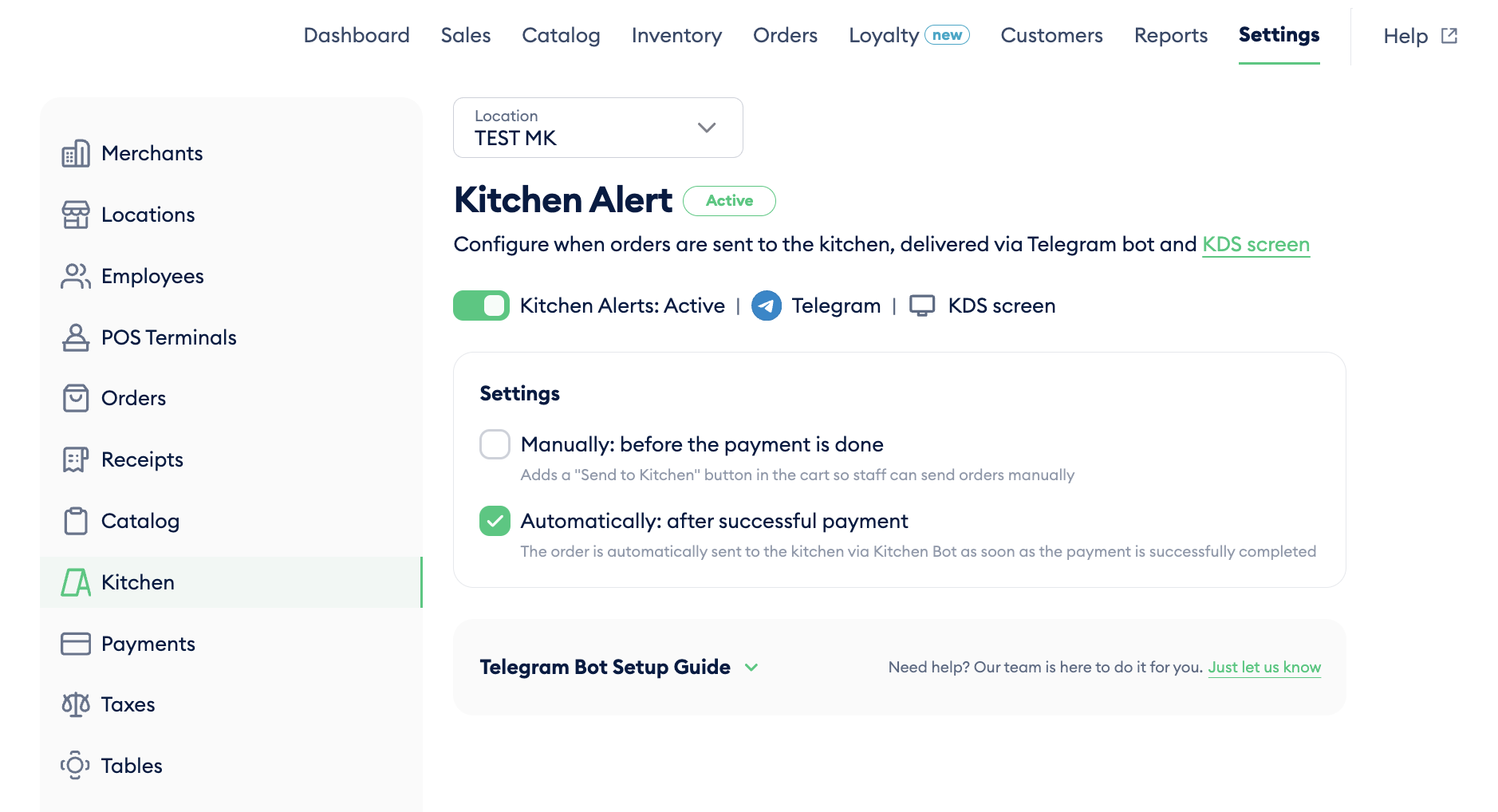

- Enable KDS in your merchant portal: Go to Settings → Kitchen → Kitchen Alert and switch the toggle to on.
- Select your preferred Order Sending Mode: Automatic or Manual.
- Open the KDS on the kitchen screen: On the device you want to use as your kitchen display, open a browser and go to: kds.fortis.world/login
- Log in with your Fortis credentials: Use the same login credentials from your Fortis Merchant Portal.
Order Sending Modes
Automatic Mode |
Manual Mode |
|
|---|---|---|
| How it works | Orders are pushed to the KDS instantly as soon as payment is completed on the POS. No extra action needed from staff. | A staff member deliberately sends the order from the POS to the KDS when ready. |
| Best for | Fast casual, and any setup where food prep should start immediately after payment. | Full-service restaurants, multi-course dining, or anywhere staged order delivery is needed. |
| Staff action required | None, orders flow automatically. | Staff taps "Send to Kitchen" from the POS. |
Features at a Glance
- Works on any device with a browser: tablet, phone, TV, or desktop monitor
- Automatic or Manual order sending mode (configurable from Merchant Portal)
- Full order details with item quantities
- Comments added at the POS are visible on the KDS
- Mark individual items or full orders as done

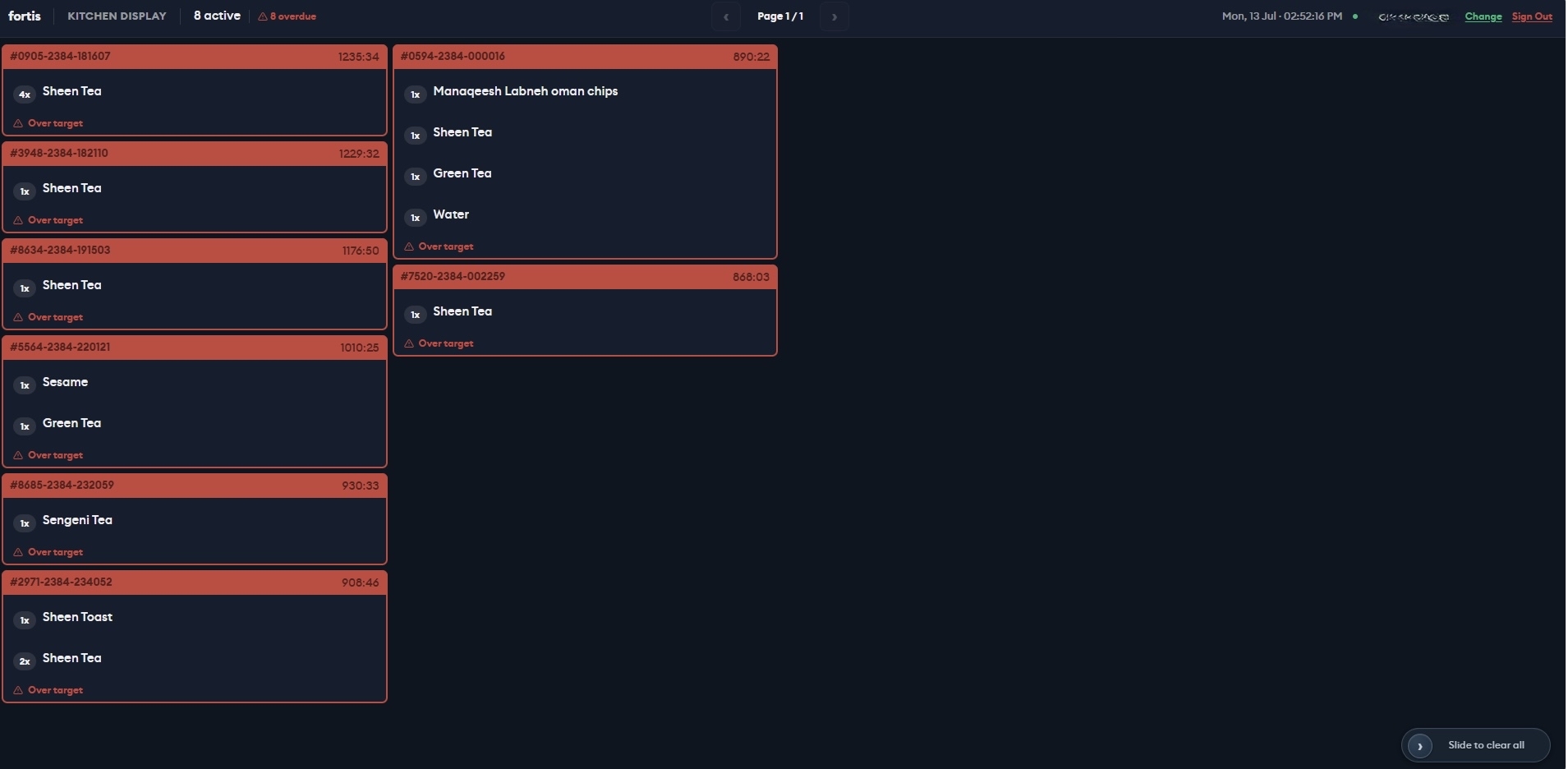

- Color-coded order urgency:
- Green — new order, just received
- Yellow — the order has been waiting for a while
- Red — overdue, needs immediate attention
KDS Frequently Asked Questions
Do I need to buy a special screen or device?
No. KDS is a web application; any device with a browser works. Tablets, phones, smart TVs, and desktop monitors are all supported.
Can KDS be configured per location?
Yes. Each KDS screen is linked to a specific location.
Can comments added at the POS be seen on the KDS?
Yes. Comments added to a sale in the POS are displayed on the KDS screen alongside the order.
Can I filter which items or categories are shown on the KDS?
Order filtering by category is not available in the current version. All order items are displayed.
What do the colors on the KDS screen mean?
Orders are color-coded by age: green for new orders, yellow for orders waiting a while, and red for overdue orders that need immediate attention.
Can I undo marking an order as done?
Yes. You can cancel a "done" status on an order if it was marked done by mistake.
